Plumbing Kit - Bypass

This plumbing kit for bypass is designed to simplify the installation of a pool heat pump or other equipment like a pool heater, chlorinator, or treatment system.

The by-pass system allows you to control and adjust the water flow going to the equipment, improving performance, protecting devices, and easing maintenance.

With this heat pump plumbing kit, you have all the essential fittings to create an effective and safe bypass circuit.

Why install a by-pass on your pool system

✔ Allows you to control the water flow to the heat pump
✔ Protects equipment from excessive flow
✔ Makes maintenance or equipment replacement easier
✔ Allows you to close off or bypass a device as needed
✔ Simple installation with standard PVC plumbing

The by-pass is highly recommended for pool heat pumps, as it allows you to adjust water flow to ensure optimal operation and extend equipment lifespan.

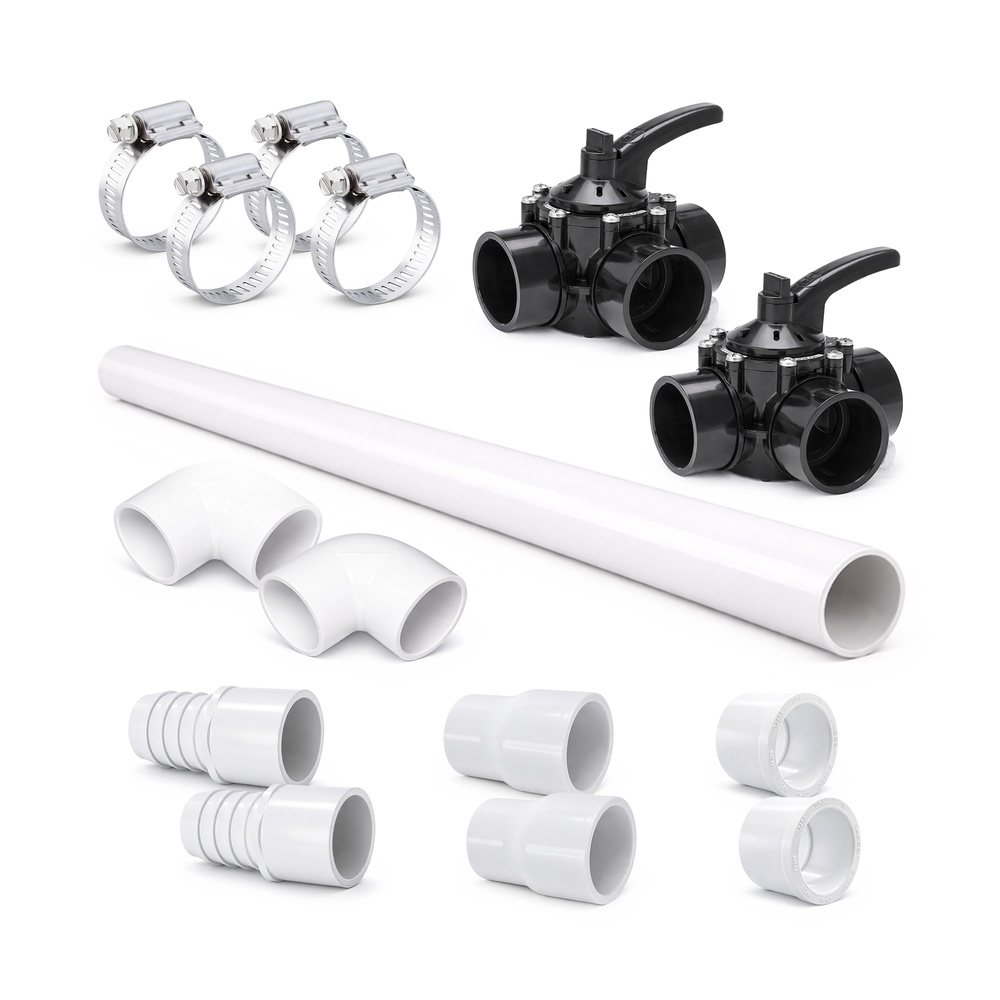

By-Pass Plumbing Kit Contents

2 × Adapters (Slip X Male Glue) – White PVC Schedule 40 – 1 1/2"
Allow flexible pipes to connect to the plumbing system.

2 × Reducing rings – PVC Schedule 40 – 2" × 1 1/2"
Reducers that adapt fittings between different plumbing diameters.

2 × 90° elbows (Glue X Glue) – White PVC Schedule 40 – 1 1/2"
Allow plumbing to be directed to create the bypass circuit.

1 × White rigid PVC pipe – 2 sections of 5 feet
Pipes used to build the by-pass structure.

2 × 3-way PVC valves – 1.5" × 2"
Valves that control water flow and adjust the flow rate to the equipment.

2 × Reducing unions – PVC Schedule 40 – 2" × 1 1/2"
Make it easier to connect and disconnect the system for maintenance.

An ideal setup for heat pumps and equipment

This pool plumbing by-pass kit is ideal for installations including:

• pool heat pump

• pool heater

• chlorinator

• ozonator or other treatment systems

It allows you to regulate the water flow, protect the equipment, and optimize the filtration system’s operation.
