- Long-term savings
- Quiet and discreet
- Compatible with saltwater pools
RevONE 55 is backordered and will ship as soon as it is back in stock.
The GoPool RevONE 55 heat pump is an efficient and reliable solution for heating residential pools in Quebec. Designed to deliver strong performance and energy savings, it provides up to 55,000 BTU of heating capacity, making it ideal for maintaining comfortable water temperatures throughout the swimming season.
Equipped with a titanium heat exchanger featuring a 30% larger surface area, it ensures optimal heat transfer for faster and more efficient heating, even during cooler periods at the beginning of the season.
Its reversible operation allows you not only to heat your pool but also to cool the water during hot summer days, providing greater comfort and flexibility depending on weather conditions.
With its quiet operation, durable construction, and full compatibility with saltwater systems, the RevONE 55 is a dependable and high-performance choice for homeowners looking to extend their swimming season with ease.
Specifications
Performance
- Heating capacity (air 80°F / water 80°F): 2.3 kW
- Heating current (air 80°F / water 80°F): 10.8 A
- Heating capacity (air 80°F / water 95°F): 2.7 kW
- Heating current (air 80°F / water 95°F): 13.2 A
- Ambient operating temperature: 32°F to 109°F
- Noise level: ≤ 50 dB(A)
Capacity & installation
- Installation type: Residential
- Pool type: Above-ground / In-ground
- Installation location: Outdoor only, in a well-ventilated area
- Minimum clearance: No obstruction within 50 cm behind the unit
- Maximum recommended pipe distance: ≤ 10 m between the pool and the heat pump
- Required pump: Circulation pump supplied by the user
- Condensation drain: Drainage nozzle included
- Mounting: Concrete base or metal brackets with M10 bolts
Water flow & hydraulics
- Recommended water flow: 83-116 L/min
- Heat exchanger: Titanium
- High design pressure: ≤ 609 PSIG
- Low design pressure: ≤ 261 PSIG
- Salt water compatible: Yes
- Hydraulic connection: Water inlet / outlet with unions
Electrical
- Operating voltage: 208-230V
- Frequency / phase: 60Hz / 1Ph
- Compressor RLA / LRA: 14.5 A / 76.0 A
- Fan motor rating: 0.5 A
- Recommended breaker: 30 A
- Recommended residual current: 30 mA
- Recommended fuse: 30 A
- Recommended power cord: 2 × 12 AWG
- Recommended signal cable: 2 × 20 AWG
- Grounding: Required
- Waterproof rating: IPX4
Control & interface
- Display type: LED display
- Operating modes: Heating / Cooling
- Temperature setting: Adjustable with up / down buttons
- Timer: Automatic on / off
- Display when off: Time
- Display while operating: Pool water temperature
- Start-up protection: 3-minute delay before compressor starts
System & technology
- Refrigerant: R410A
- Refrigerant charge: 56.4 oz
- Compressor: International brand compressor
- High-pressure protection: Yes
- Low-pressure protection: Yes
- Water flow protection: Yes
- Low-temperature protection: Automatic stop
- Defrosting: Temperature-controlled automatic defrosting
Dimensions & weight
- Unit dimensions: 961 × 390 × 658 mm
- Net weight: 67 kg

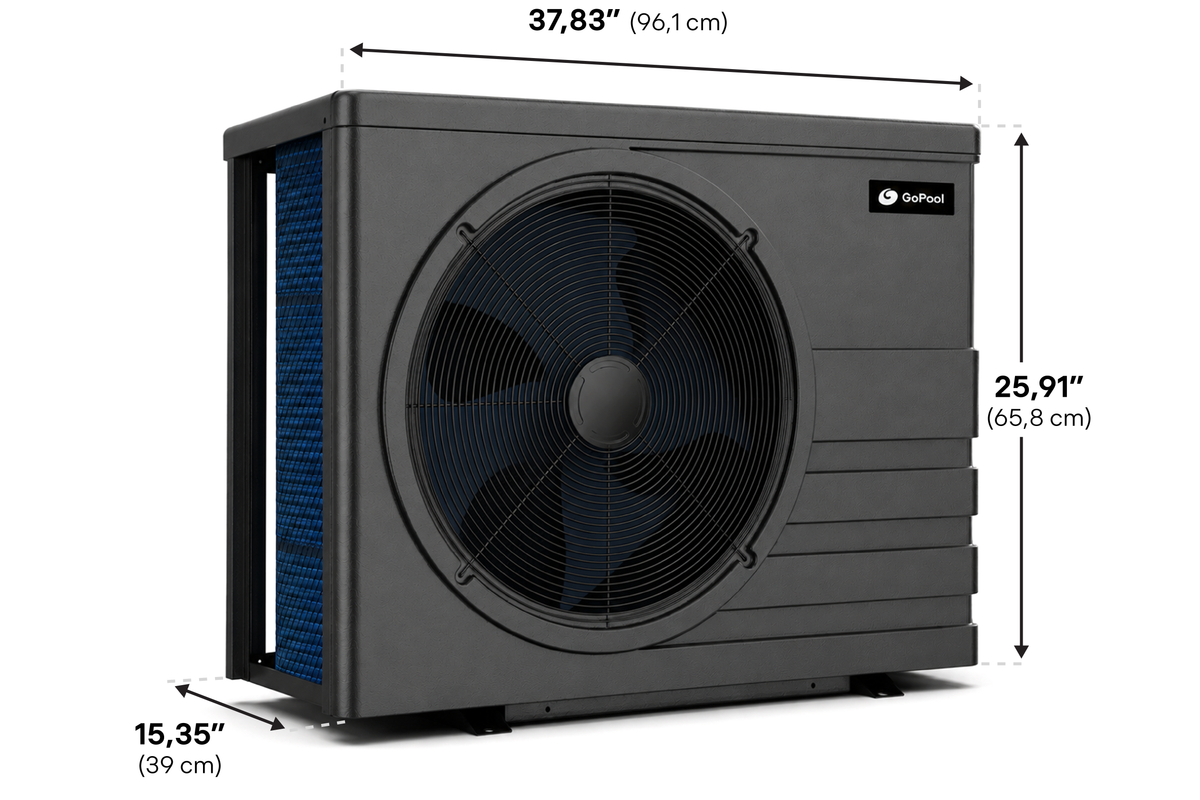

Dimensions

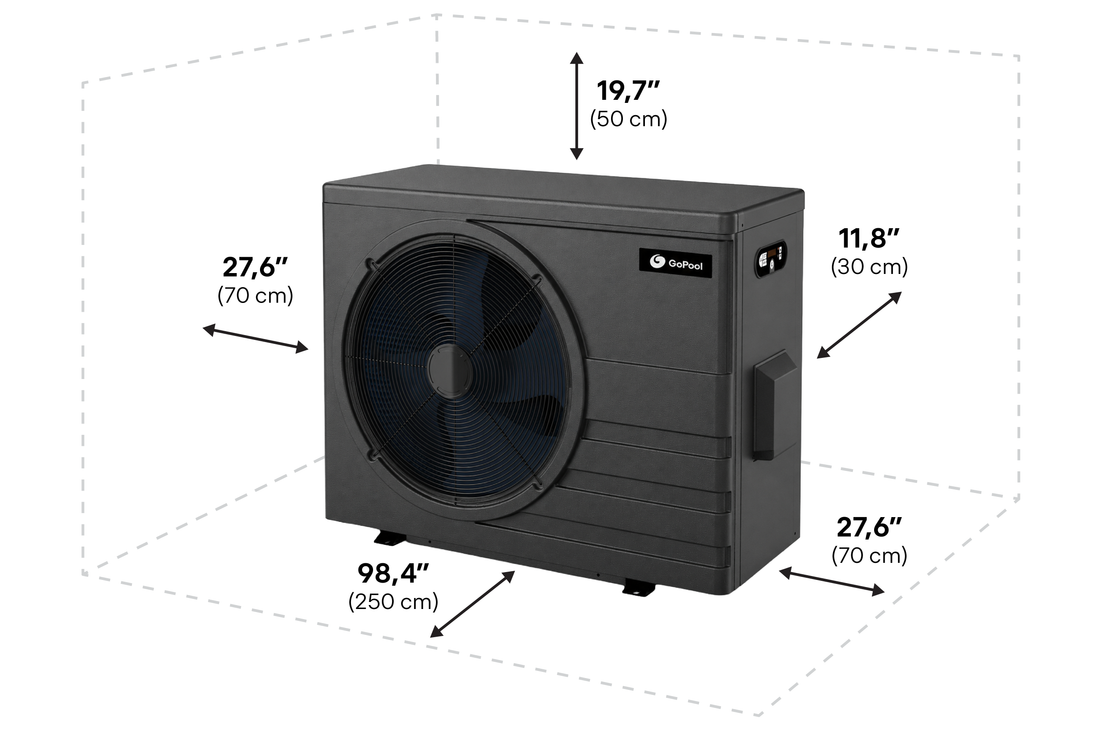

Clearances
