CF1 Single Cartridge 150 sq ft

GoPool  |  Model# CF1-150S

High-performance cartridge filter for clear water with easy, low-maintenance cleaning.

CF1 Single Cartridge 150 sq ft

GoPool  |  Model# CF1-150S

High-performance cartridge filter for clear water with easy, low-maintenance cleaning.

  • Superior filtration for clear and healthy water
  • Quick maintenance with washable and reusable cartridge
599$ 399$
Buy online
In Stock - Ready to ship
--
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Visa
Direct Price
No account required
Fast delivery
100% Canadian
Based in Montreal, Canada
4.9 stars
30 000 +
Customers served
Livraison Rapide
Order of 149.99+
Type of pool

Pool type

Water type

Freshwater and saltwater compatible

Usage

Residential

Maintenance

Reusable Reinforced Polyester Cartridge

Monitor pressure in real time

The pressure gauge on top of the filter makes it easy to monitor performance and know when to clean the cartridge.

Locking system with latch

The ring and latch system allows for easy filter removal while ensuring a solid, watertight seal.

Simple drain for maintenance and winterization

Located at the base, the plug allows the filter to be completely emptied quickly without disassembly.

Secured air relief valve

Allows air and pressure to be released from the system for safe startup and reliable operation, with O-ring sealing.

Description

The GoPool CF1-150S cartridge filter offers the perfect balance between filtration capacity and ease of maintenance, making it ideal for medium-sized residential pools. Its reinforced polyester cartridge provides fine, efficient filtration for consistently clear water with less upkeep.

Designed for flexible operation, it can run continuously or in cycles depending on your system needs. Its corrosion-resistant construction and durable components ensure long-lasting performance season after season.

Versatile and reliable, the CF1-150S is a great choice for homeowners looking to improve filtration without adding complexity.

Features
  • Reusable reinforced polyester filter cartridge
  • Fine filtration for clear and sparkling water
  • Corrosion-free design for increased durability
  • Continuous or intermittent operation as needed
  • Compatible with above-ground and in-ground pools and spas
  • Compatible with salt systems and fresh water
  • Flexible installation (above or below water line)
  • Simple maintenance with quick cartridge cleaning
  • Extended filtration cycles for fewer interventions
  • Integrated pressure gauge and manual air relief valve
Warranty
We understand that the best warranty is the one that you don’t need to use! But incase you do, GoPool offers industries best warranty and parts program
2 year
Full replacement

Specifications

Compatibility

  • Type: Residential
  • Pool Type: In-ground or above-ground pool, spa
  • Installation Type: Above or below waterline
  • Filter Type: Single cartridge filter
  • Compatible Water Type: Freshwater or saltwater

Performance & Filtration

  • Effective Filtration Area: 150 sq ft (13.94 m²)
  • Design Flow Rate: 120 GPM (455 LPM)
  • Filter Element Type: Reinforced polyester reusable cartridge
  • Operating Mode: Continuous or intermittent operation
  • Water Clarity: Superior filtration with long filtration cycles

Plumbing & Connections

  • Included Fittings: 2" union nuts
  • Union Compatibility: 2" / 2.5" ANSI union
  • Manual Air Relief Valve: Yes
  • Drain Plug: Yes
  • Pressure Gauge: Yes - 60 PSI

Construction & Features

  • Material: Corrosion-resistant construction
  • Cartridge Access: Locking ring with clamp system
  • Maintenance: Easy cartridge cleaning with garden hose
  • Winterizing: Yes - drain plug should be removed during winter season

Dimensions, Installation & Warranty

  • Total Installed Height (A): 36" (91.2 cm)
  • Required Side Clearance (B): 18.3" (46.4 cm)
  • Required Top Clearance (C): 11.8" (30 cm)
  • Body Dimensions: A: 20.9" (53.05 cm) | B: 12.40" (31.50 cm) | C: 18.30" (46.40 cm) | D: 3.20" (8.20 cm)
  • Warranty: 2 years

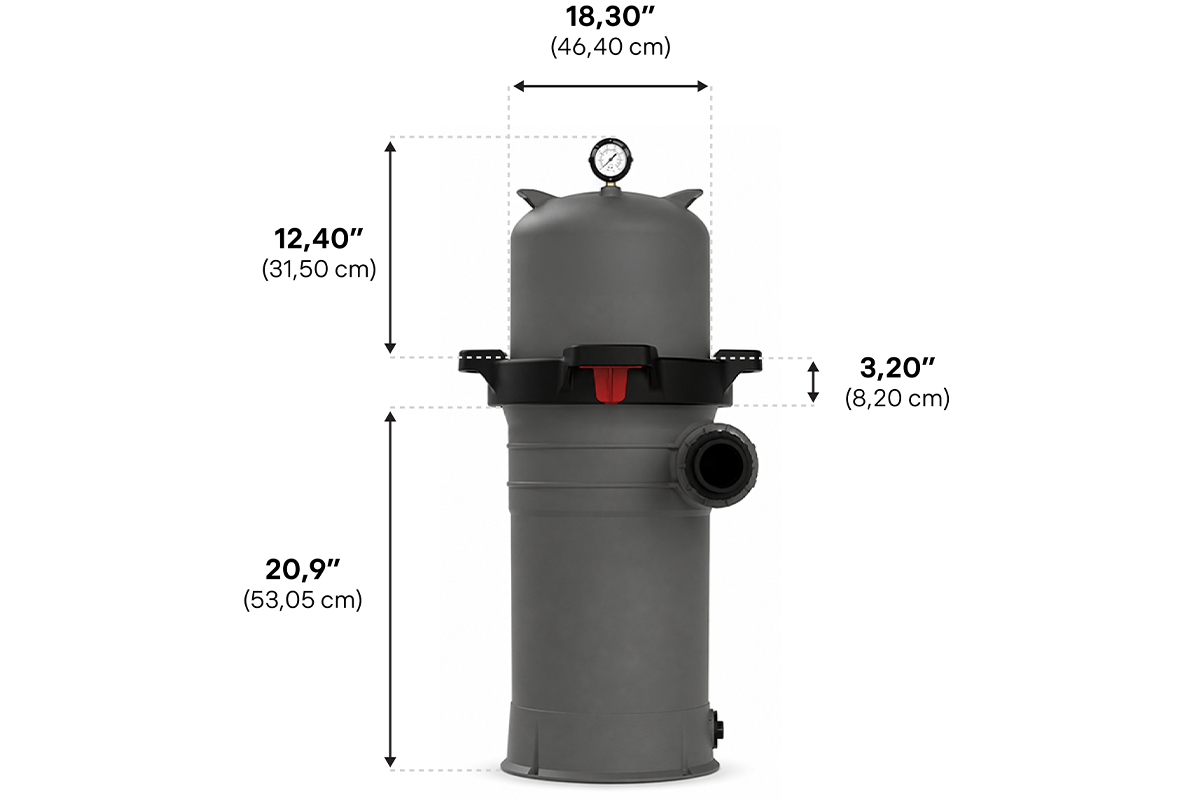

Dimensions

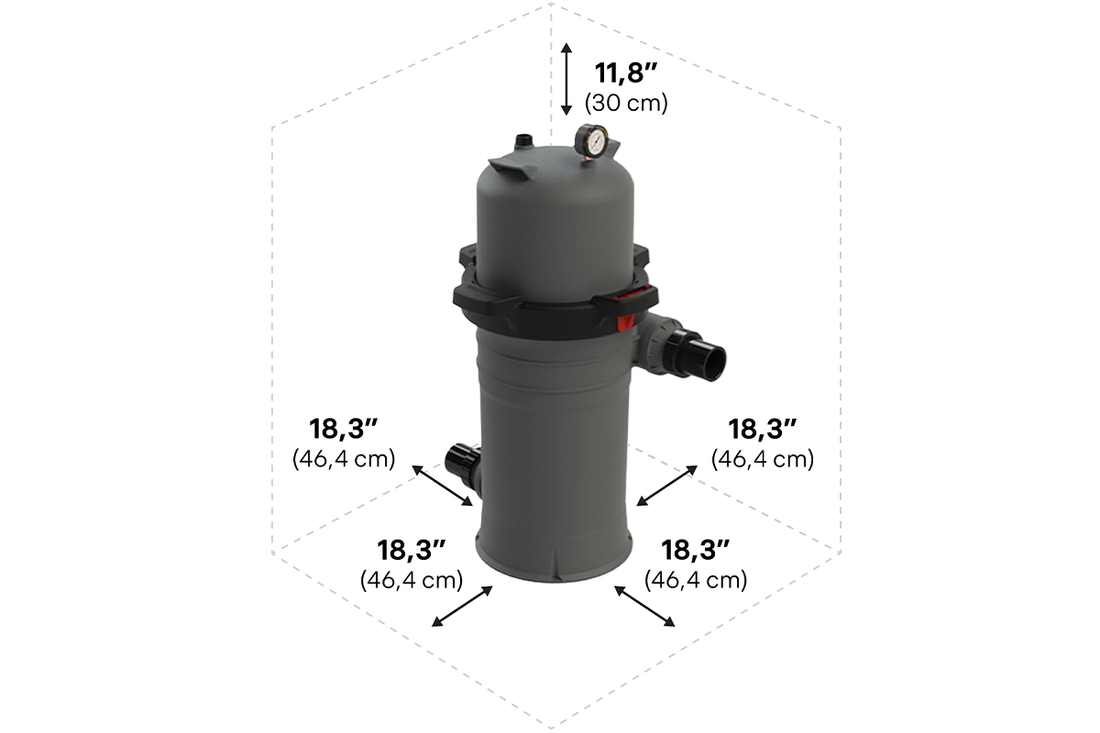

Clearances

Customer reviews

Photos shared by verified customers help to showcase real facilities and authentic experiences.

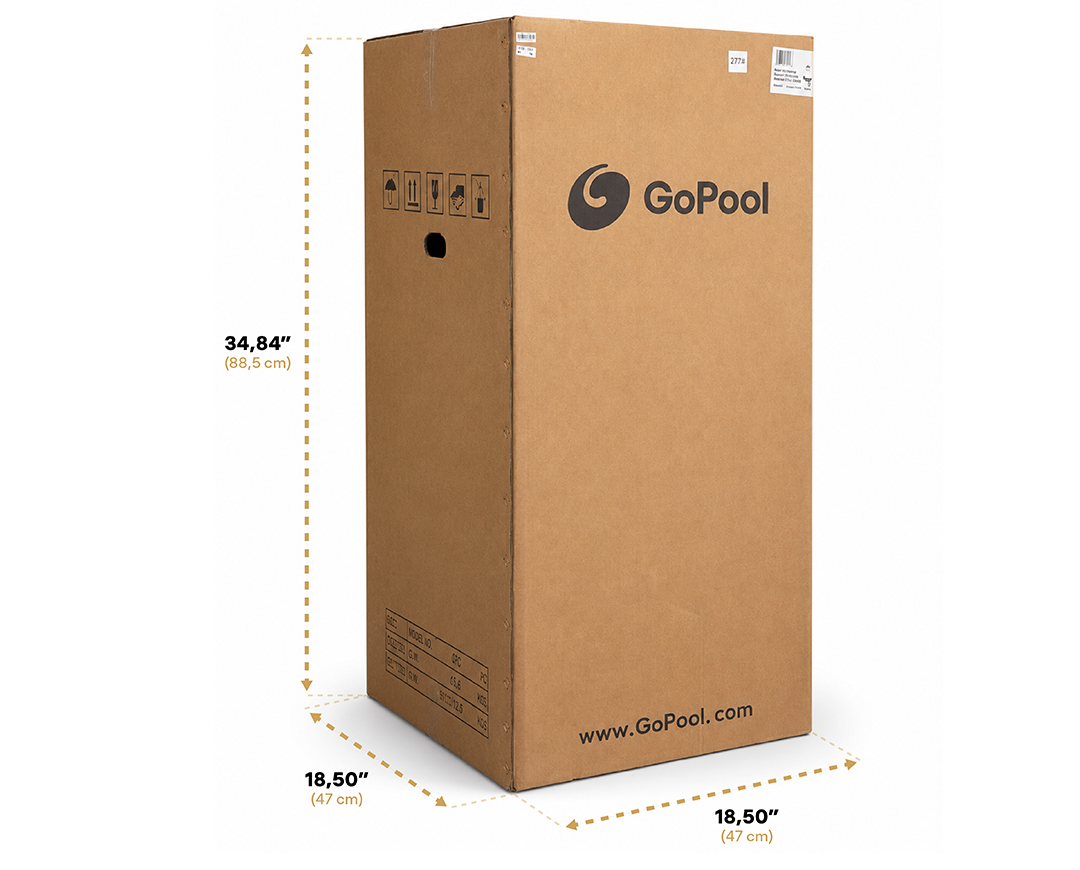

Packaging

No surprises. Here's how your product is packaged and everything you'll find in the box for a quick and easy installation.

Dimensions

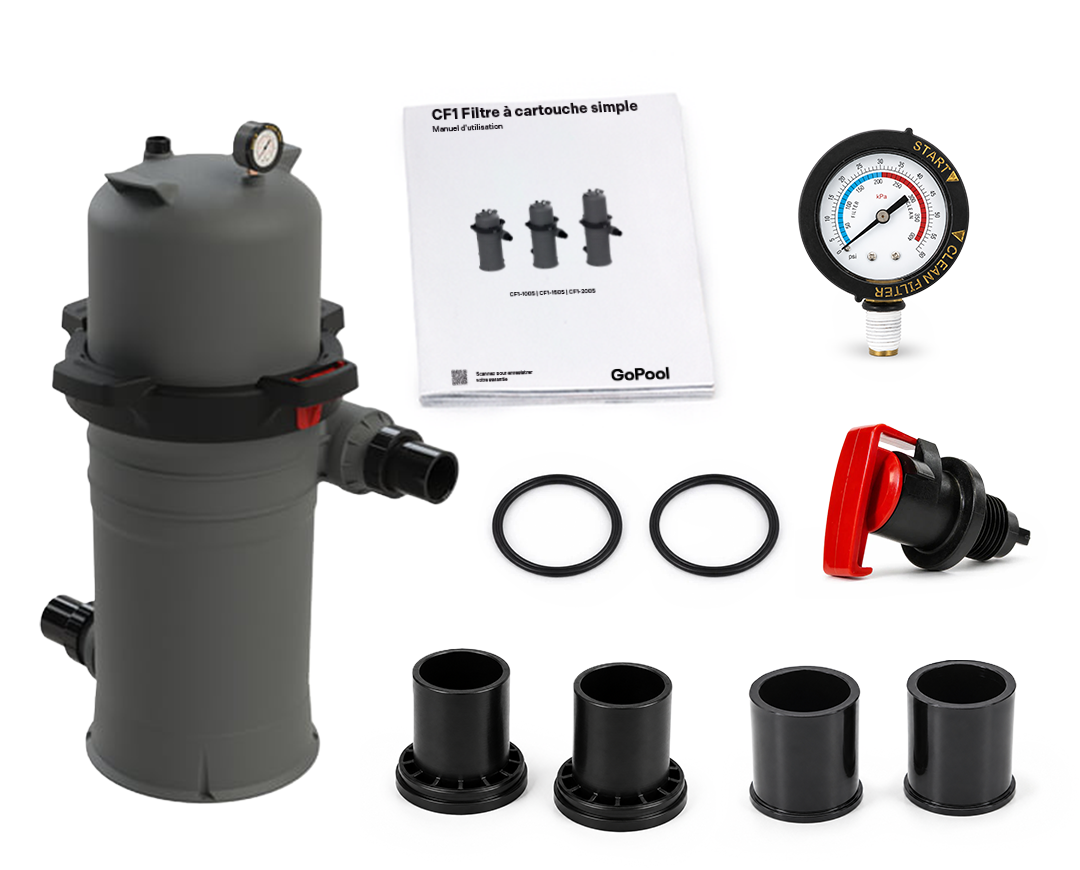

In the box

Replacement parts

Schema Part number Quantity Price
CF1 Pressure gauge 60psi
CF1 Pressure gauge 60psi
1 117068519 1 29.99$ View product
CF1 Upper Body 100s
CF1 Upper Body 100s
2 550188198 1 129.99$ View product
UCF1 Upper Body 150s
UCF1 Upper Body 150s
2 550188199 1 139.99$ View product
CF1 Upper Body 200s
CF1 Upper Body 200s
2 550188200 1 149.99$ View product
CF1 Nut
CF1 Nut
3 570818164 1 4.99$ View product
CF1 Locking Ring
CF1 Locking Ring
4 550058153 1 89.99$ View product
CF1 Latch
CF1 Latch
5 550058196 1 14.99$ View product
CF1 O-ring
CF1 O-ring
6 51503312 1 12.99$ View product
CF1/CF1M Union Nut 2" 90
CF1/CF1M Union Nut 2" 90
7 430178159 2 14.99$ View product
CF1 Union 1.5inch/2inch ICF100-200
8 430309780 2 0.00$ View product
CF1/CF1M Union 2''/2.5'' ANSI
CF1/CF1M Union 2''/2.5'' ANSI
8 430308158 2 14.99$ View product
O-ring CF1/CF1M D77Xd62X8
O-ring CF1/CF1M D77Xd62X8
9 111040071 2 12.99$ View product
CF1 Lower Body
CF1 Lower Body
10 E140401 1 449.00$ View product
CF1/CF1M Drain Plug with O-Ring
CF1/CF1M Drain Plug with O-Ring
11 E160553 1 3.99$ View product
CF1 Overpressure valve with O-ring
CF1 Overpressure valve with O-ring
12 E140412 1 12.99$ View product
CF1 Nut D31X20 14G
CF1 Nut D31X20 14G
13 570818165 1 4.99$ View product
CF1 Element 100S
CF1 Element 100S
14 914100004 1 100.42$ View product
CF1 Element 150s
CF1 Element 150s
14 914100005 1 131.54$ View product
CF1 Element 200s
CF1 Element 200s
14 914100006 1 164.18$ View product
CF1 2.5 inch PVC pipe for 200S
CF1 2.5 inch PVC pipe...
15 107048520-3 1 34.99$ View product
CF1 2.5 inch PVC pipe for 150S
CF1 2.5 inch PVC pipe...
15 107048520-2 1 34.99$ View product
CF1 2.5 inch PVC pipe for 100S
CF1 2.5 inch PVC pipe...
15 107048520 1 34.99$ View product
CF1 Central drain connection
CF1 Central drain connection
16 550128166 1 24.99$ View product
CF1 Pressure gauge 60psi
  • CF1 Pressure gauge 60psi
  • Schema: 1
  • Part number: 117068519
  • Quantity: 1
  • Price: 29.99$
View product
CF1 Upper Body 100s
  • CF1 Upper Body 100s
  • Schema: 2
  • Part number: 550188198
  • Quantity: 1
  • Price: 129.99$
View product
UCF1 Upper Body 150s
  • UCF1 Upper Body 150s
  • Schema: 2
  • Part number: 550188199
  • Quantity: 1
  • Price: 139.99$
View product
CF1 Upper Body 200s
  • CF1 Upper Body 200s
  • Schema: 2
  • Part number: 550188200
  • Quantity: 1
  • Price: 149.99$
View product
CF1 Nut
  • CF1 Nut
  • Schema: 3
  • Part number: 570818164
  • Quantity: 1
  • Price: 4.99$
View product
