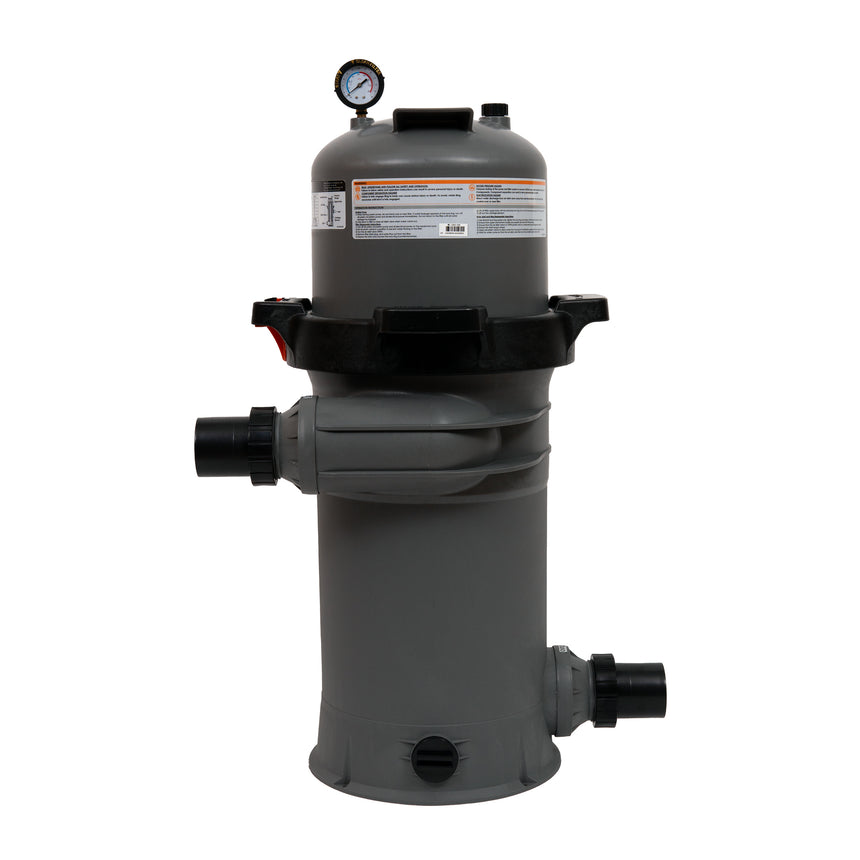

CF1 Single Cartridge 100 sq ft

Name: CF1 Single Cartridge 100 sq ft
Brand: GoPool
SKU: CF1-100S
Price: 349.00 CAD
Availability: InStock

GoPool | Model# CF1-100S

High-performance cartridge filter for clear water with easy, low-maintenance cleaning.

CF1 Single Cartridge 100 sq ft

GoPool | Model# CF1-100S

High-performance cartridge filter for clear water with easy, low-maintenance cleaning.

Superior filtration for clear and healthy water
Quick maintenance with washable and reusable cartridge

~~529$~~ 349$

Buy online

In Stock - Ready to ship

Delivering to --

Direct Price

No account required

Fast delivery

100% Canadian

Based in Montreal, Canada

4.9 stars

30 000 +

Customers served

Livraison Rapide

Order of 149.99+

Type of pool

Pool type

Water type

Freshwater and saltwater compatible

Usage

Residential

Maintenance

Reusable Reinforced Polyester Cartridge

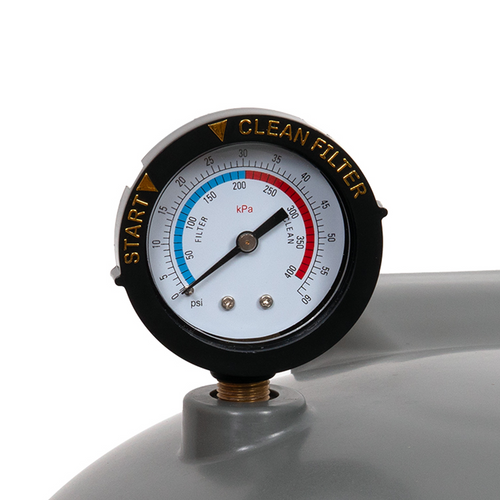

Monitor pressure in real time

The pressure gauge on top of the filter makes it easy to monitor performance and know when to clean the cartridge.

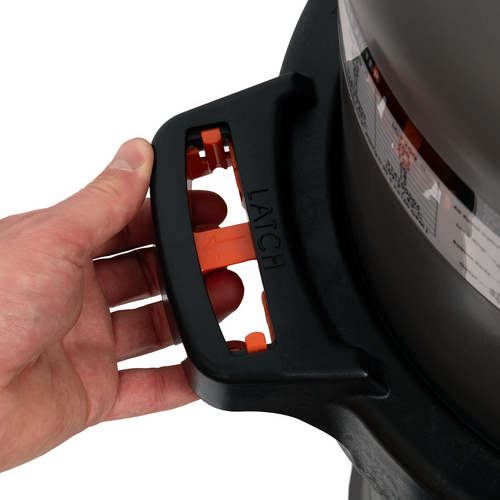

Locking system with latch

The ring and latch system allows for easy filter removal while ensuring a solid, watertight seal.

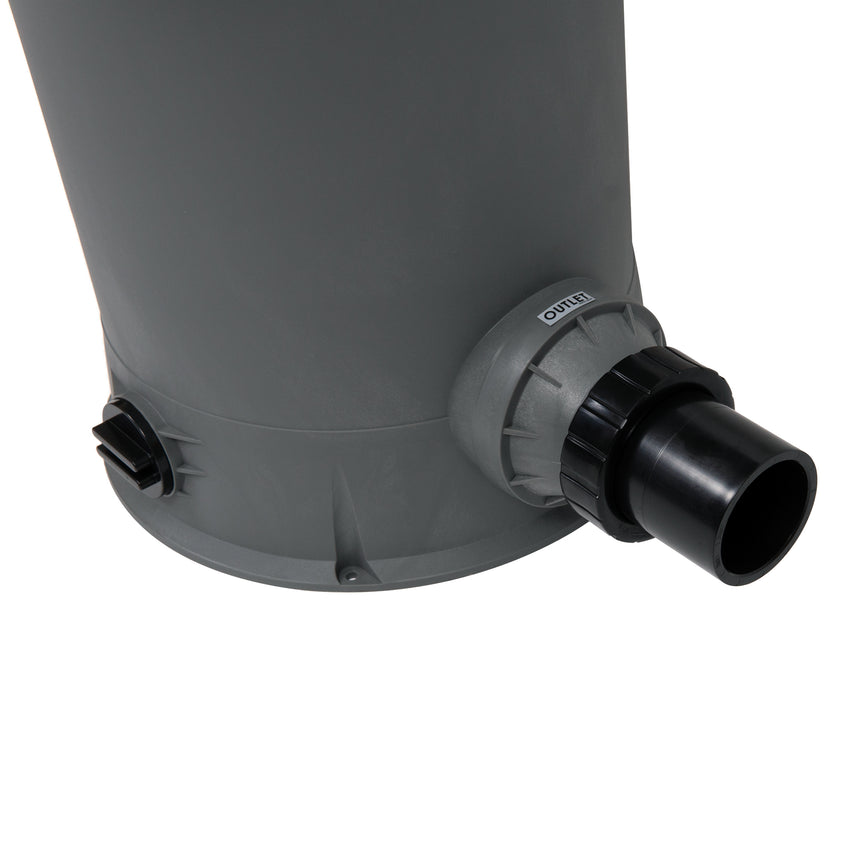

Simple drain for maintenance and winterization

Located at the base, the plug allows the filter to be completely emptied quickly without disassembly.

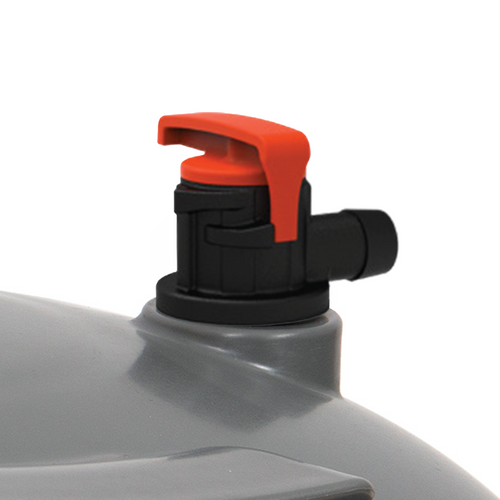

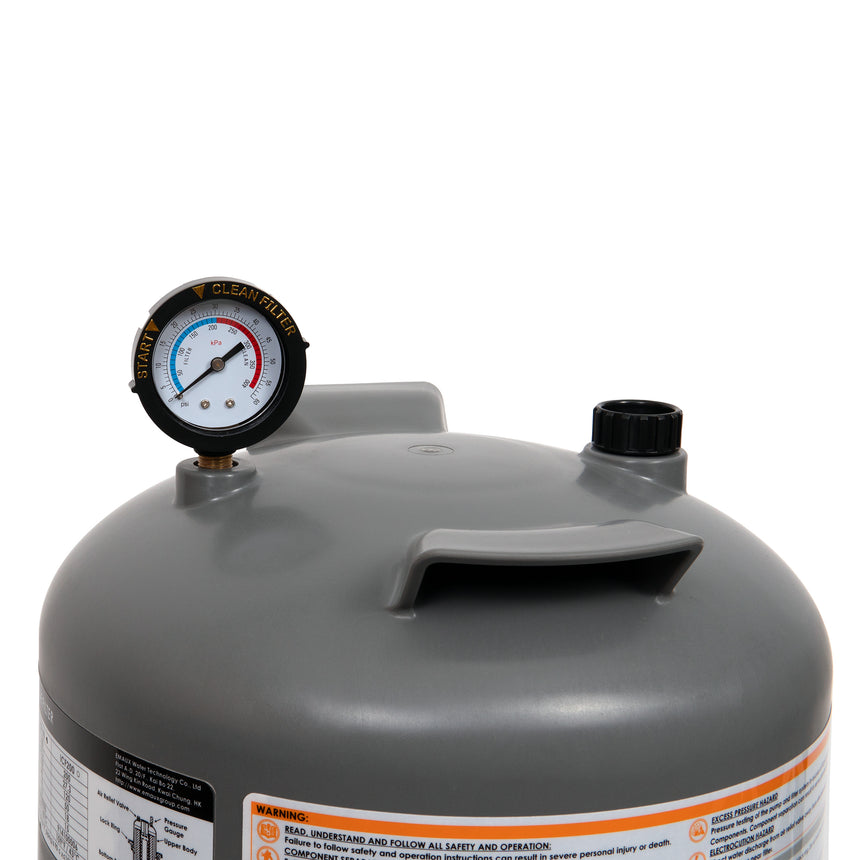

Secured air relief valve

Allows air and pressure to be released from the system for safe startup and reliable operation, with O-ring sealing.

Description

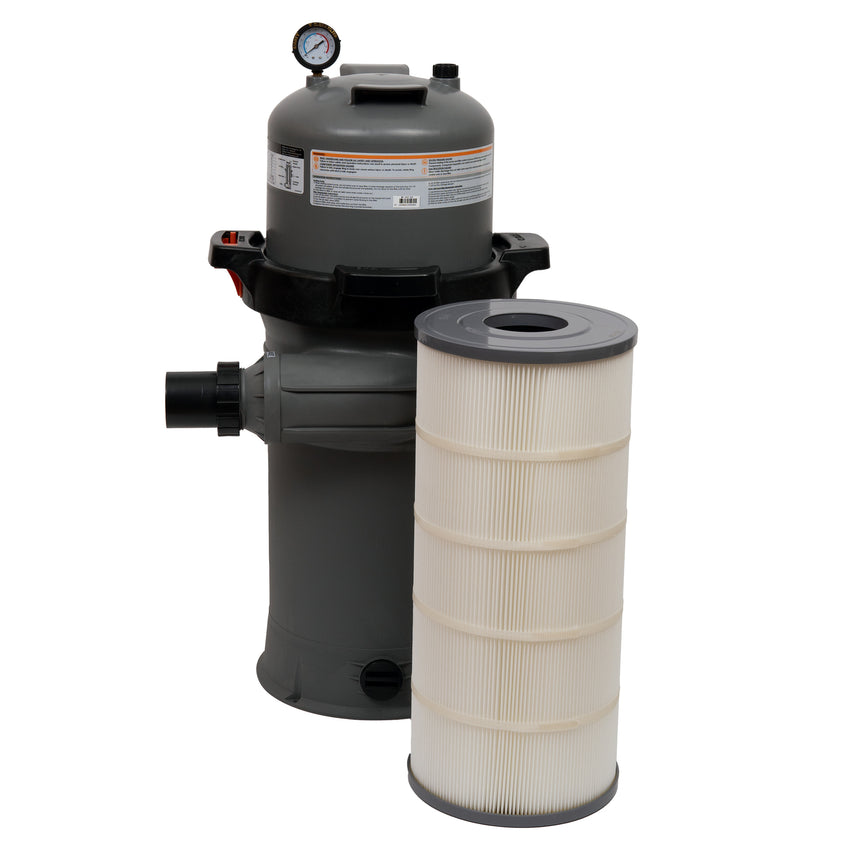

The GoPool CF1-100S cartridge filter is a compact and efficient solution designed for residential pools seeking high-performance filtration with minimal maintenance. Its reinforced polyester reusable cartridge delivers excellent water clarity while reducing cleaning frequency.

Its corrosion-resistant design and optimized filtration system ensure reliable operation whether running continuously or intermittently. Easy to install and maintain, it is ideal for above-ground pools, small in-ground pools, and spas.

Perfect for smaller setups, the CF1-100S offers a simple, durable, and cost-effective way to keep your water clean all season long.

Features

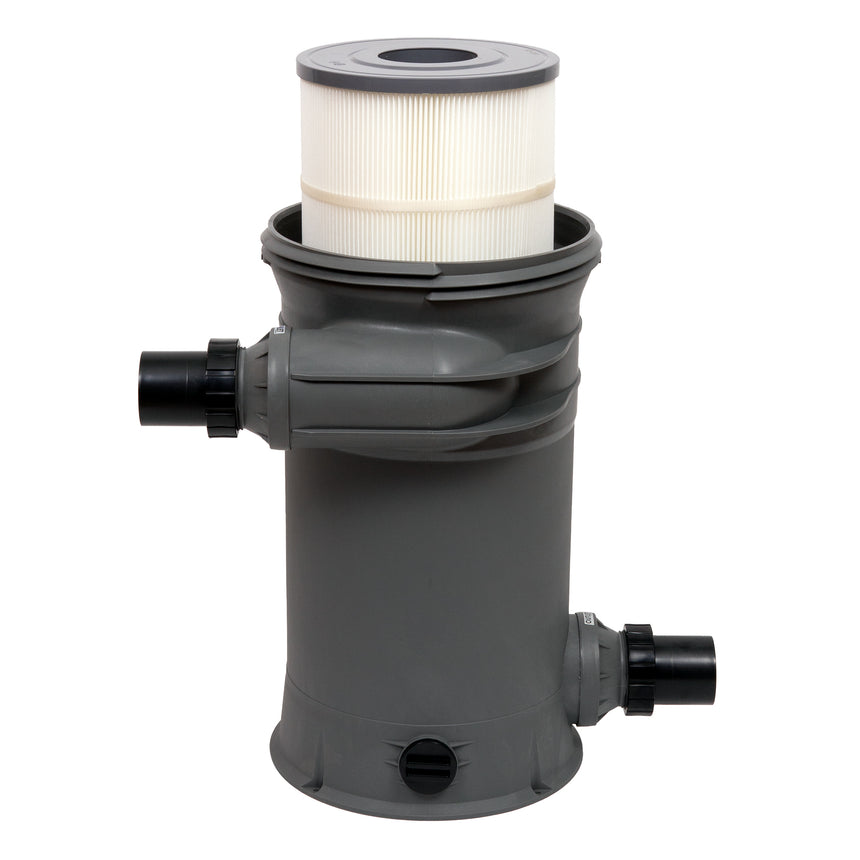

Reusable reinforced polyester filter cartridge
Fine filtration for clear and sparkling water
Corrosion-free design for increased durability
Continuous or intermittent operation as needed
Compatible with above-ground and in-ground pools and spas
Compatible with salt systems and fresh water
Flexible installation (above or below water line)
Simple maintenance with quick cartridge cleaning
Extended filtration cycles for fewer interventions
Integrated pressure gauge and manual air relief valve

Warranty

We understand that the best warranty is the one that you don’t need to use! But incase you do, GoPool offers industries best warranty and parts program

2 year

Full replacement

Specifications

Compatibility

Type: Residential
Pool Type: In-ground or above-ground pool, spa
Installation Type: Above or below waterline
Filter Type: Single cartridge filter
Compatible Water Type: Freshwater or saltwater

Performance & Filtration

Effective Filtration Area: 100 sq ft (9.29 m²)
Design Flow Rate: 100 GPM (379 LPM)
Filter Element Type: Reinforced polyester reusable cartridge
Operating Mode: Continuous or intermittent operation
Water Clarity: Superior filtration with long filtration cycles

Plumbing & Connections

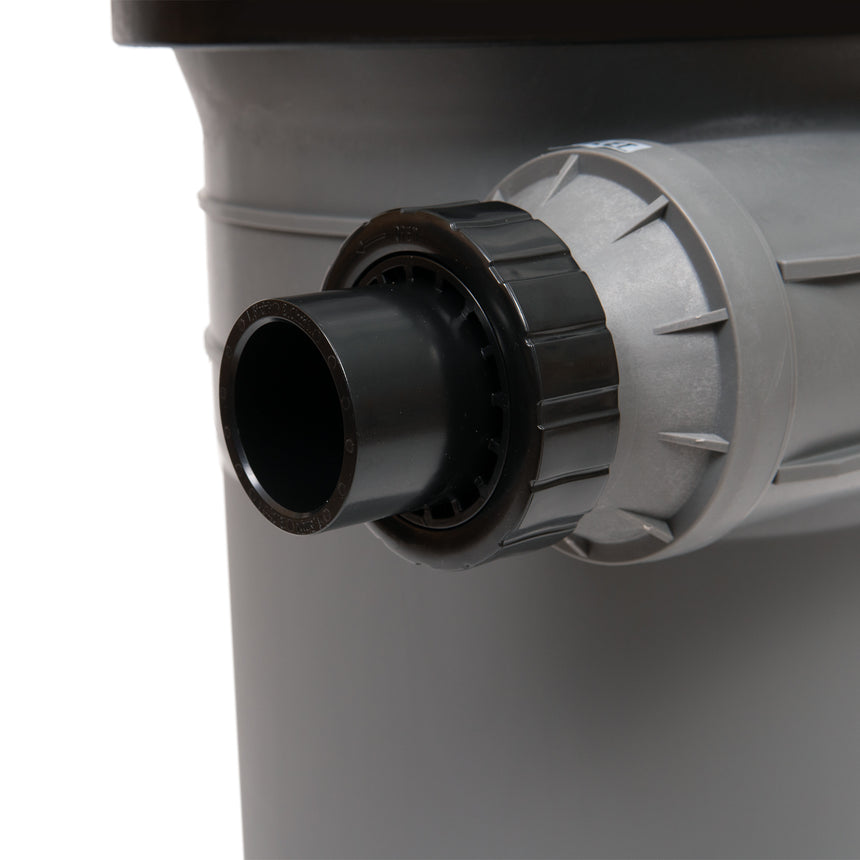

Included Fittings: 2" union nuts
Union Compatibility: 2" / 2.5" ANSI union
Manual Air Relief Valve: Yes
Drain Plug: Yes
Pressure Gauge: Yes - 60 PSI

Construction & Features

Material: Corrosion-resistant construction
Cartridge Access: Locking ring with clamp system
Maintenance: Easy cartridge cleaning with garden hose
Winterizing: Yes - drain plug should be removed during winter season

Dimensions, Installation & Warranty

Total Installed Height (A): 32.6" (82.7 cm)
Required Side Clearance (B): 18.3" (46.4 cm)
Required Top Clearance (C): 11.8" (30 cm)
Body Dimensions: A: 20.9" (53.05 cm) | B: 9.05" (23.00 cm) | C: 18.30" (46.40 cm) | D: 3.20" (8.20 cm)
Warranty: 2 years

Manuel CF1 Cartouche Simple FR (pdf) Manuel CF1 Cartouche Simple EN (pdf)

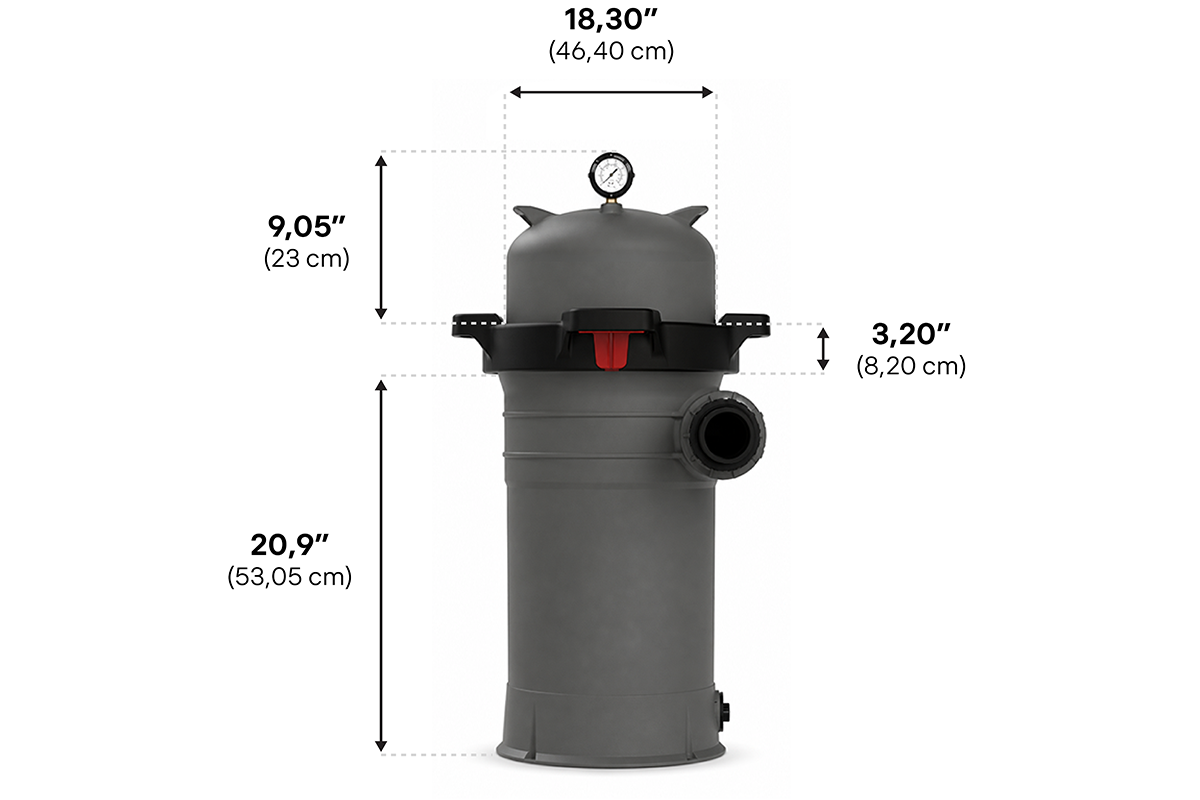

Dimensions

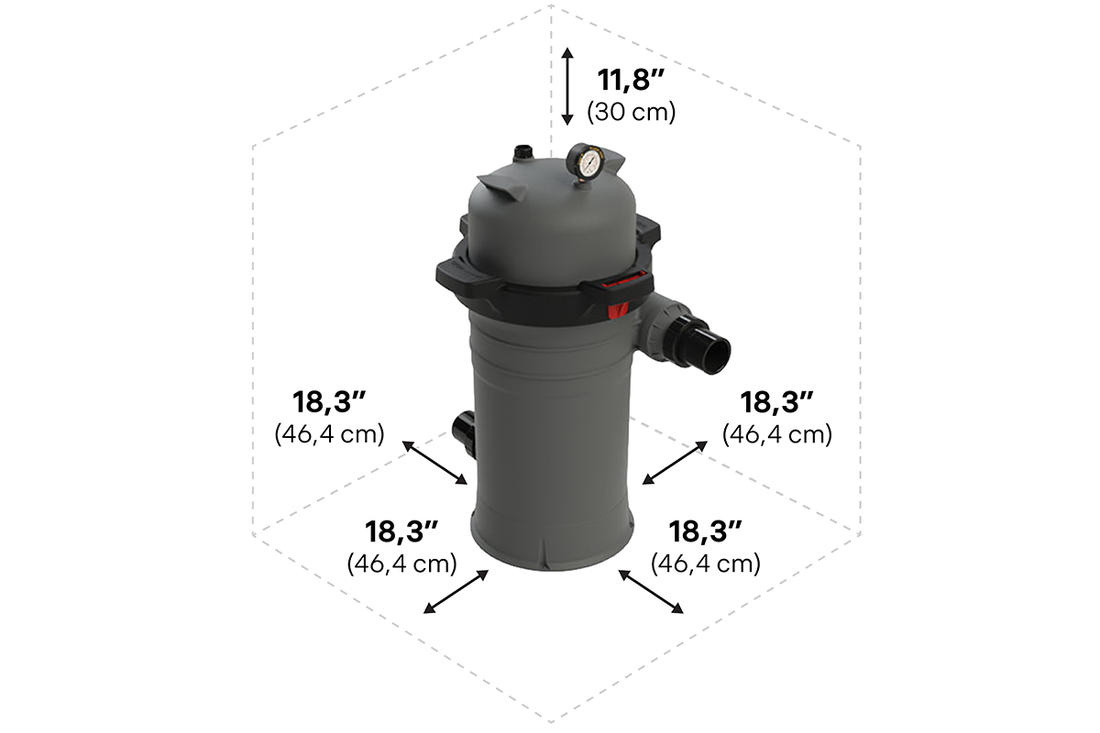

Clearances

Customer reviews

Photos shared by verified customers help to showcase real facilities and authentic experiences.

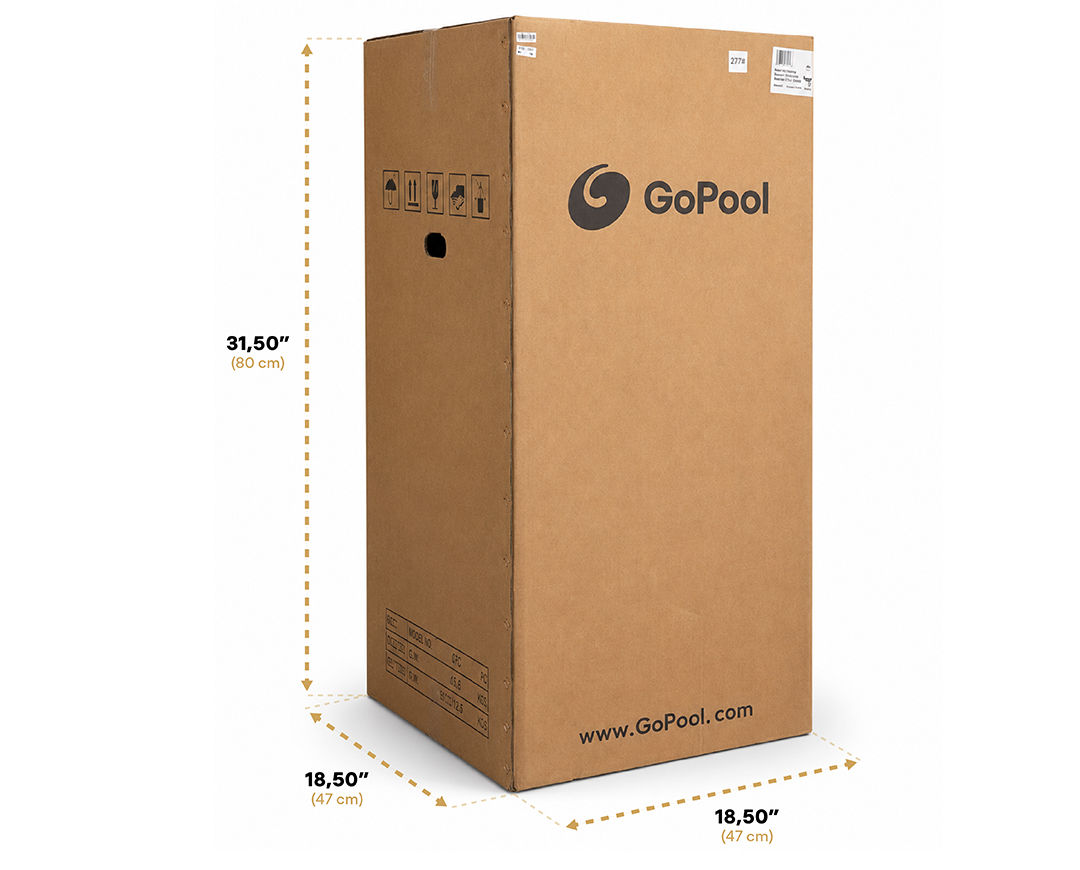

Packaging

No surprises. Here's how your product is packaged and everything you'll find in the box for a quick and easy installation.

Dimensions

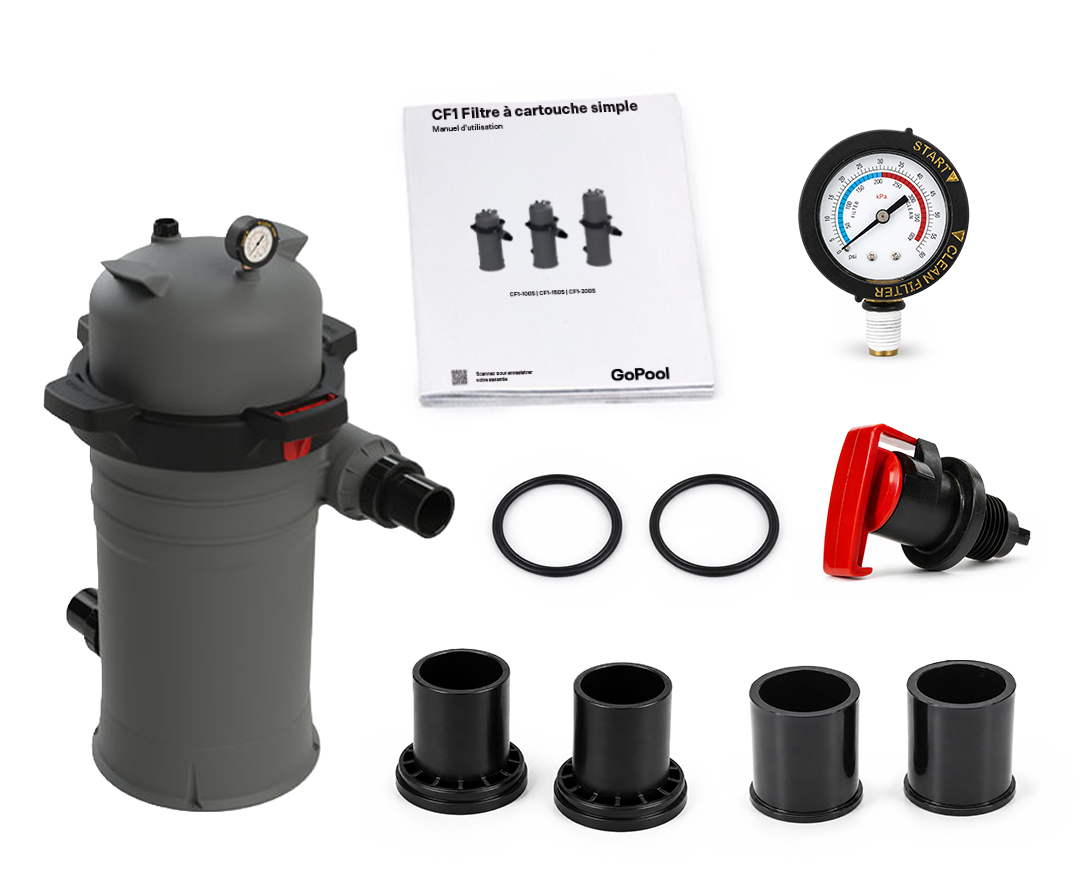

In the box

Replacement parts

	Schema	Part number	Quantity	Price
CF1 Pressure gauge 60psi	1	117068519	1	29.99$	View product
CF1 Upper Body 100s	2	550188198	1	129.99$	View product
UCF1 Upper Body 150s	2	550188199	1	139.99$	View product
CF1 Upper Body 200s	2	550188200	1	149.99$	View product
CF1 Nut	3	570818164	1	4.99$	View product
CF1 Locking Ring	4	550058153	1	89.99$	View product
CF1 Latch	5	550058196	1	14.99$	View product
CF1 O-ring	6	51503312	1	12.99$	View product
CF1/CF1M Union Nut 2" 90	7	430178159	2	14.99$	View product
CF1 Union 1.5inch/2inch ICF100-200	8	430309780	2	0.00$	View product
CF1/CF1M Union 2''/2.5'' ANSI	8	430308158	2	14.99$	View product
O-ring CF1/CF1M D77Xd62X8	9	111040071	2	12.99$	View product
CF1 Lower Body	10	E140401	1	449.00$	View product
CF1/CF1M Drain Plug with O-Ring	11	E160553	1	3.99$	View product
CF1 Overpressure valve with O-ring	12	E140412	1	12.99$	View product
CF1 Nut D31X20 14G	13	570818165	1	4.99$	View product
CF1 Element 100S	14	914100004	1	100.42$	View product
CF1 Element 150s	14	914100005	1	131.54$	View product
CF1 Element 200s	14	914100006	1	164.18$	View product
CF1 2.5 inch PVC pipe...	15	107048520-3	1	34.99$	View product
CF1 2.5 inch PVC pipe...	15	107048520-2	1	34.99$	View product
CF1 2.5 inch PVC pipe...	15	107048520	1	34.99$	View product
CF1 Central drain connection	16	550128166	1	24.99$	View product
